Officially recommended card for macOS Mojave now with EFI boot screen!

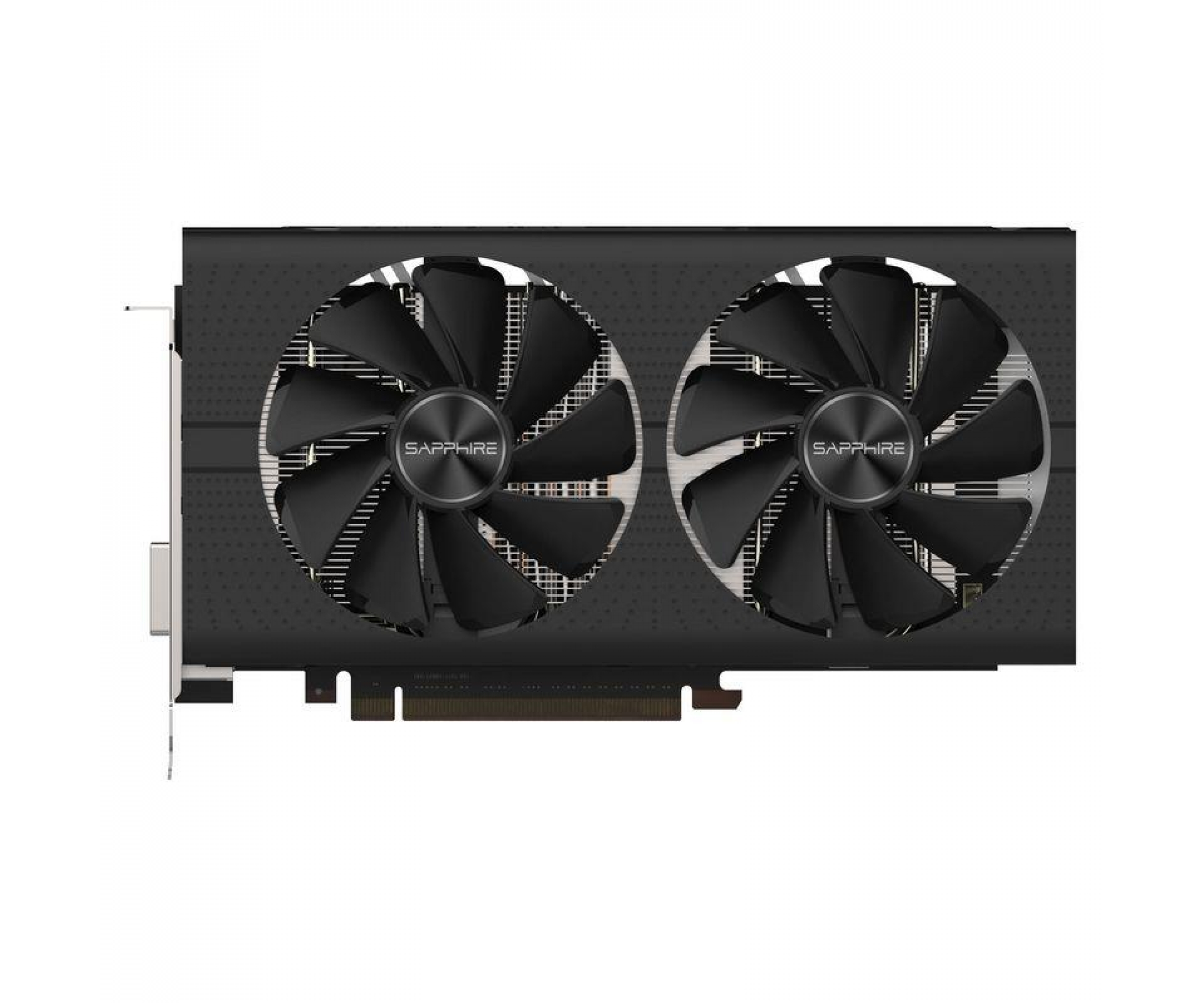

As pictured the most wanted Sapphire Pulse 8 GB version.
- Apple Mac Pro 4,1 (2009) or Mac Pro 5,1 (2010-2012) - installed macOS 10.13.4 (High Sierra) or newer - native support by macOS High Sierra, Mojave, Catalina, Big Sur, Monterey, no drivers needed
- compatible with macOS and Windows (via BootCamp) - supports Apple boot screen (gray screen with Apple logo on startup) on all ports (also on 4K displays) - uses internal Mac Pro power supply - supports PCI Express 2.0 link under macOS and Windows - supports five displays simultaneously: 1x dual-link DVI + 2x DisplayPort 1.4 + 2x HDMI 1.4 (2.0 under Windows) - supports 4K@60Hz via DisplayPort or 5K@60Hz via dual DisplayPort port and 4K@30Hz via DVI and HDMI ports - supports OpenGL, OpenCL and Metal in applications and games - allows an upgrade to macOS Mojave 10.14.6, macOS Catalina 10.15.7, macOS Big Sur 11.6.7, macOS Monterey 12.0.1 or later - allows Windows 8/8.1/10/11 installation in UEFI mode with sleep/resume working - supports sound via HDMI and DisplayPorts under macOS (from macOS 10.14 or above)
- graphics processor clock: 1366 MHz - memory speed: 2000 MHz - amount and type of memory: 8 GB GDDR5 - bus width: 256-bit - bus: PCI-Express 2.0 x16 (5.0 GT/s) - TDP: 185W
up to 4K@60Hz via DisplayPort, up to 4K@30Hz via HDMI, up to 4K@30Hz via DVI
2x 6-pin Mac Pro PCIe power cable, 8-pin to 2x 6-pin power adapter
1x DVI dual-link, 2x DisplayPort 1.4, 2x HDMI 2.0 (1.4 under macOS)
up to 5 concurrent displays
8 GB GDDR5
PCI-Express 2.0 x16 (5.0 GT/s)
HDMI Audio, DisplayPort Audio
Metal, OpenCL, OpenGL
4,1 (2009), 5,1 (2010-2012)
10.13.4 (High Sierra) or later, 10.14 (Mojave) or later, 10.15 (Catalina) or later, 11.0.1 (Big Sur) or later, 12.0.1 (Monterey) or later
Yes, via Apple BootCamp (also in UEFI mode)
