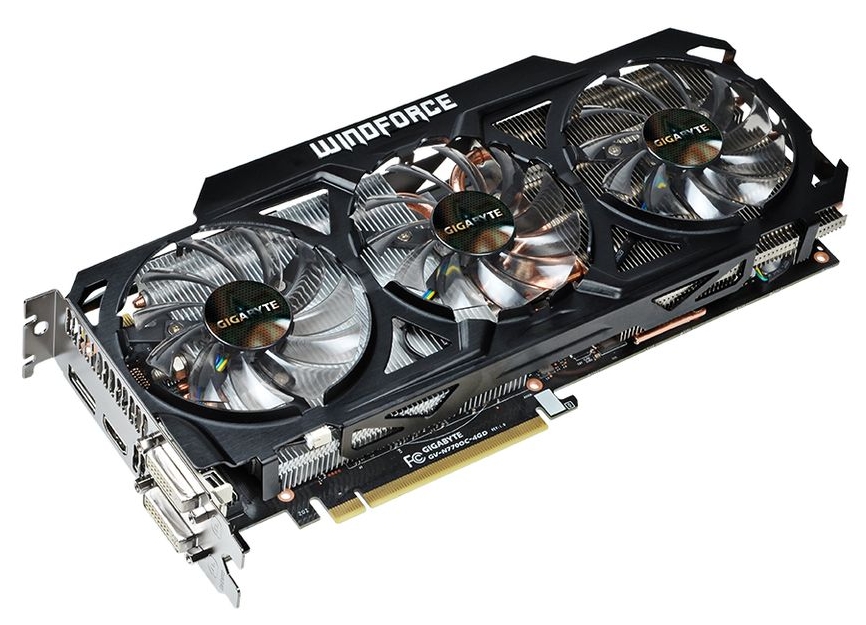

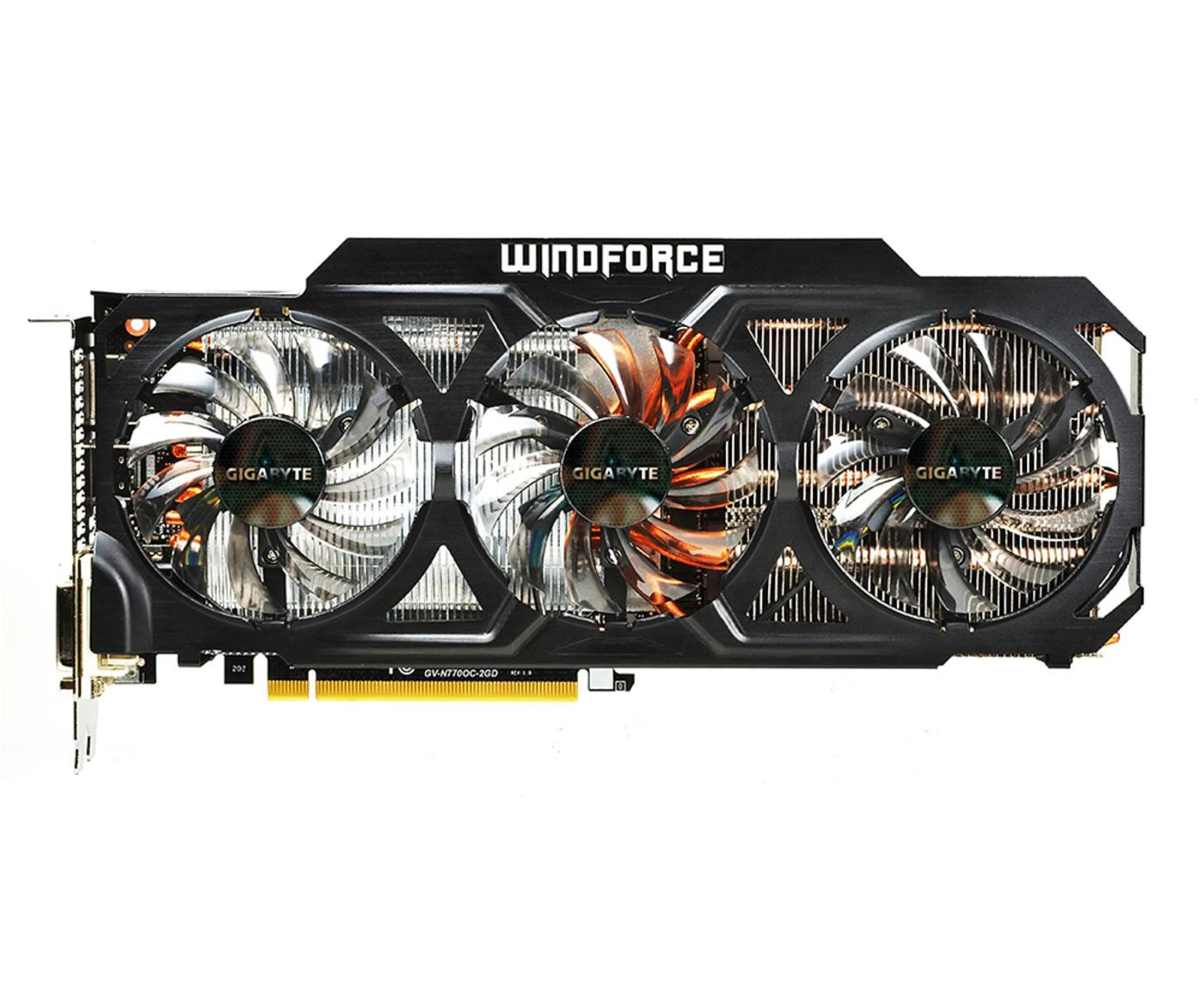

NVIDIA GeForce GTX 770 2 GB GDDR5 (Gigabyte OC WindForce GTX770)

Out of stock
€169.00 €209.00

The GTX 770 is recommended mostly for the Mac Pro 3,1. Also works great in Mac Pro 4,1 and 5,1.



It uses same drivers as GTX680 and that's why it has native support under any macOS version. You may choose to use the Web Drivers, or simply use the built in Apple ones. Works great under macOS Mojave, Catalina, Monterey (after installing GeForce Kepler Patcher) and Ventura/Sonoma (via OpenCore Legacy Patcher).



System requirements:

- Apple Mac Pro 3,1 (2008), Mac Pro 4,1 (2009) or Mac Pro 5,1 (2010-2012)

- installed Mac OS X 10.8.3 (Mountain Lion) or newer

- native support macOS Mountain Lion/Mavericks/Yosemite/High Sierra/Mojave/Catalina/Big Sur, on High Sierra and older macOS versions the latest NVIDIA Web Driver and CUDA driver are recommended

- macOS Monterey requires installation of GeForce Kepler Patcher

- also supports Ventura/Sonoma via OCLP patcher

- no support for macOS Big Sur



Key features:

- compatible with macOS and Windows (via BootCamp)
- supports Apple boot screen (gray screen with Apple logo on startup) on all ports (on 4K displays using DisplayPort boot screen is not available, but works via HDMI or DVI - just 30 Hz)
- uses internal Mac Pro power supply
- supports PCI Express 2.0 link under macOS and Windows

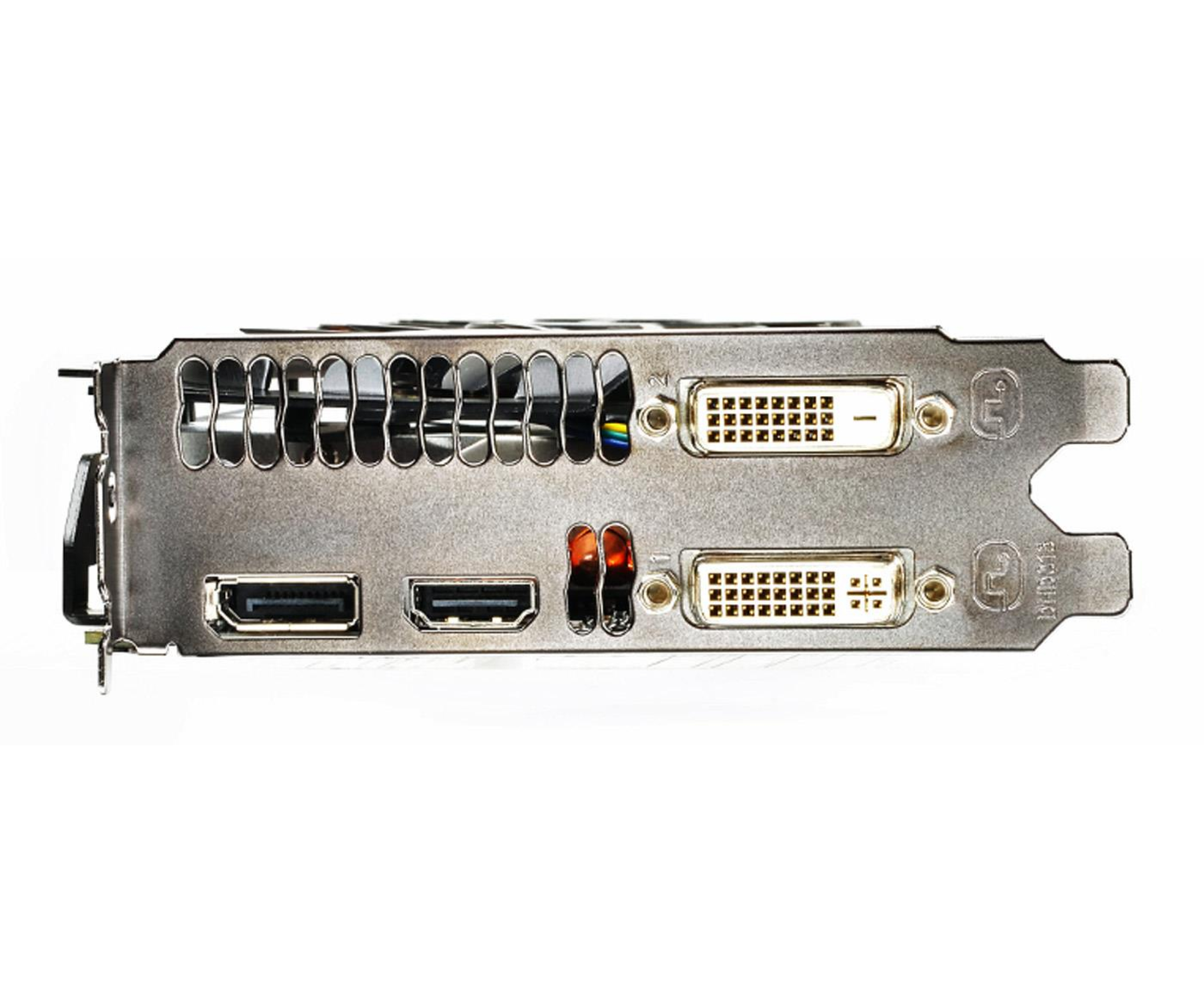

- supports four displays simultaneously: 2x dual-link DVI, 1x HDMI 1.4 and 1x DisplayPort 1.2
- supports 4K@60Hz via DisplayPort port and 4K@30Hz via DVI and HDMI ports
- supports Metal, OpenCL, OpenGL and CUDA (up to macOS High Sierra) in applications and games
- supports sound via HDMI and DisplayPort under macOS (after installing additional drivers, also under macOS Mojave/Catalina)
- allows installation of Windows 8/8.1/10/11 in UEFI mode



Technical specification:

- graphics processor clock: 1137 MHz + 1189 MHz boost
- memory speed: 1753 MHz
- amount and type of memory: 2 GB GDDR5
- bus width: 256-bit
- bus: PCI-Express 2.0 x16
- CUDA cores: 1536



https://pics.macvidcards.eu/gtx770_2gb_msi/2.jpg

https://pics.macvidcards.eu/rx_vega_64_8gb_msi/hdmi_dp.jpg

https://pics.macvidcards.eu/gtx770_2gb_sapphire/4.jpg

https://pics.macvidcards.eu/gtx770_2gb_gigabyte/nowe/4.jpg

https://pics.macvidcards.eu/gtx770_2gb_gigabyte/2.jpg

https://pics.macvidcards.eu/gtx770_2gb_gigabyte/nowe/5.jpg

https://pics.macvidcards.eu/gtx770_2gb_gigabyte/nowe/6.jpg

https://pics.macvidcards.eu/gtx770_2gb_gigabyte/nowe/7.jpg

https://pics.macvidcards.eu/gtx770_2gb_gigabyte/nowe/8.jpg
Boot screen
  • up to 4K@60Hz via DisplayPort (only on non-4K displays), up to 4K@30Hz via HDMI, up to 4K@30Hz via DVI
Condition
  • Used (flashed)
  • 6 months
Package includes
  • 6-pin Mac Pro PCIe power cable, 8-pin Mac Pro PCIe power cable
Specification
  • 2x DVI dual-link, 1x DisplayPort 1.2, 1x HDMI 1.4
  • up to 4 concurrent displays
  • 1137 MHz + 1189 MHz boost
  • 1753 MHz
  • 2 GB GDDR5
  • 256-bit
  • PCI-Express 2.0 x16
  • 1536
  • 6-pin + 8-pin
  • 230 W
  • HDMI Audio, DisplayPort Audio
  • Metal, CUDA, OpenCL, OpenGL
System Requirements
  • 3,1 (2008), 4,1 (2009), 5,1 (2010-2012)
  • 10.8.3 (Mountain Lion) or later, 10.9 (Mavericks) or later, 10.10 (Yosemite) or later, 10.11 (El Capitan) or later, 10.12 (Sierra) or later, 10.13 (High Sierra) or later, 10.14 (Mojave) or later, 10.15 (Catalina) or later, 12.0.1 (Monterey) or later, 13.0 (Ventura) or later, 14.0 (Sonoma) or later
  • GeForce Kepler patcher installation required (only on macOS Monterey 12.0.1 or later)
  • Yes, via Apple BootCamp (also in UEFI mode)
