AMD Radeon RX580 4 GB GDDR5

2 left in stock
€249.00 €299.00

A cheaper variant of RX 580 with half or memory and bit lower clocks, but still powerful Polaris chip and backplate included.



Works out of the box with macOS High Sierra/Mojave/Catalina/Big Sur and Monterey. No drivers needed. Now with EFI boot screen.

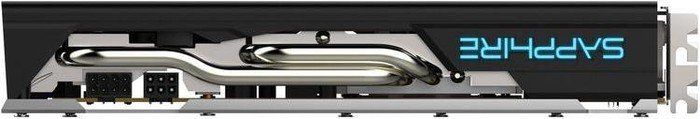

The most wanted Sapphire Pulse edition as pictured.



System requirements:

- Apple Mac Pro 4,1 (2009) or Mac Pro 5,1 (2010-2012)
- installed macOS 10.13.4 (High Sierra) or newer
- native support by macOS High Sierra, Mojave, Catalina, Big Sur, Monterey, no drivers needed



Key features:

- compatible with macOS and Windows (via BootCamp)
- supports Apple boot screen (gray screen with Apple logo on startup) on all ports (also on 4K displays)
- uses internal Mac Pro power supply
- supports PCI Express 2.0 link under macOS and Windows
- supports five displays simultaneously: 1x DVI-D dual link, 2x DisplayPort 1.4 + 2x HDMI 1.4 (2.0 under Windows)
- supports 4K@60Hz via DisplayPort or 5K/8K@60Hz via dual DisplayPort port and 4K@30Hz via HDMI and DVI ports
- supports OpenGL, OpenCL and Metal in applications and games
- allows an upgrade to macOS Mojave 10.14.6, macOS Catalina 10.15.7, macOS Big Sur 11.7, macOS Monterey 12.0.1 or later
- allows Windows 8/8.1/10/11 installation in UEFI mode with suspend/resume working
- supports sound via HDMI and DisplayPorts under macOS (from macOS 10.14 or above)



Technical specification:

- graphics processor clock: 1366 MHz
- memory speed: 1750 MHz
- amount and type of memory: 4 GB GDDR5
- bus width: 256-bit
- bus: PCI-Express 2.0 x16 (5.0 GT/s)


https://pics.macvidcards.eu/rx580_4gb_sapphire3/rx580_4gb_4displays.jpg

https://pics.macvidcards.eu/rx580_8gb_sapphire/3.jpg

https://pics.macvidcards.eu/rx580_8gb_asus/boot_screen_apple.jpg

https://pics.macvidcards.eu/rx6600xt_8gb_asus/hdmi.jpg

https://pics.macvidcards.eu/rx580_4gb_sapphire3/0x.jpg

https://pics.macvidcards.eu/rx580_4gb_sapphire3/1.jpg

https://pics.macvidcards.eu/rx580_4gb_sapphire3/2.jpg

https://pics.macvidcards.eu/rx580_4gb_sapphire3/3.jpg

https://pics.macvidcards.eu/rx580_4gb_sapphire3/4.jpg

https://pics.macvidcards.eu/rx580_4gb_sapphire3/5.jpg

https://pics.macvidcards.eu/rx580_4gb_sapphire3/6.jpg
Boot screen
  • up to 4K@60Hz via DisplayPort, up to 4K@30Hz via HDMI, up to 4K@30Hz via DVI
Condition
  • Used (flashed)
  • 12 months
Package includes

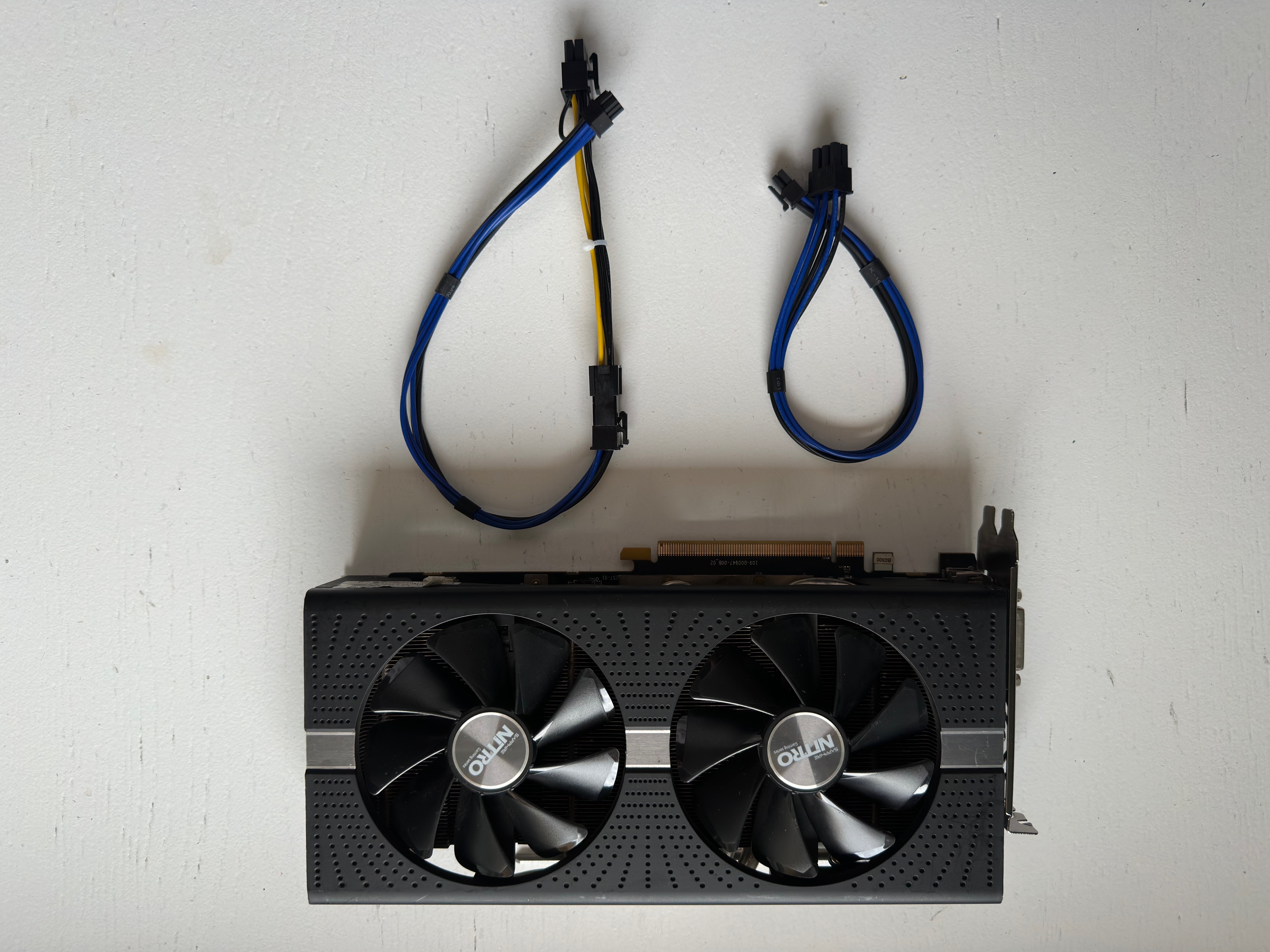

  • 2x 6-pin Mac Pro PCIe power cable
Specification
  • 1x DVI dual-link, 2x DisplayPort 1.4, 2x HDMI 2.0 (1.4 under macOS)
  • up to 5 concurrent displays
  • 1366 MHz
  • 1750 MHz
  • 4 GB GDDR5
  • 256-bit
  • PCI-Express 2.0 x16 (5.0 GT/s)
  • not supported
  • 8-pin
  • 185 W
  • HDMI Audio, DisplayPort Audio
  • Metal, OpenCL, OpenGL
System Requirements
  • 4,1 (2009), 5,1 (2010-2012)
  • 10.13.4 (High Sierra) or later, 10.14 (Mojave) or later, 10.15 (Catalina) or later, 11.0.1 (Big Sur) or later, 12.0.1 (Monterey) or later
  • Not needed
  • Yes, via Apple BootCamp (also in UEFI mode)
