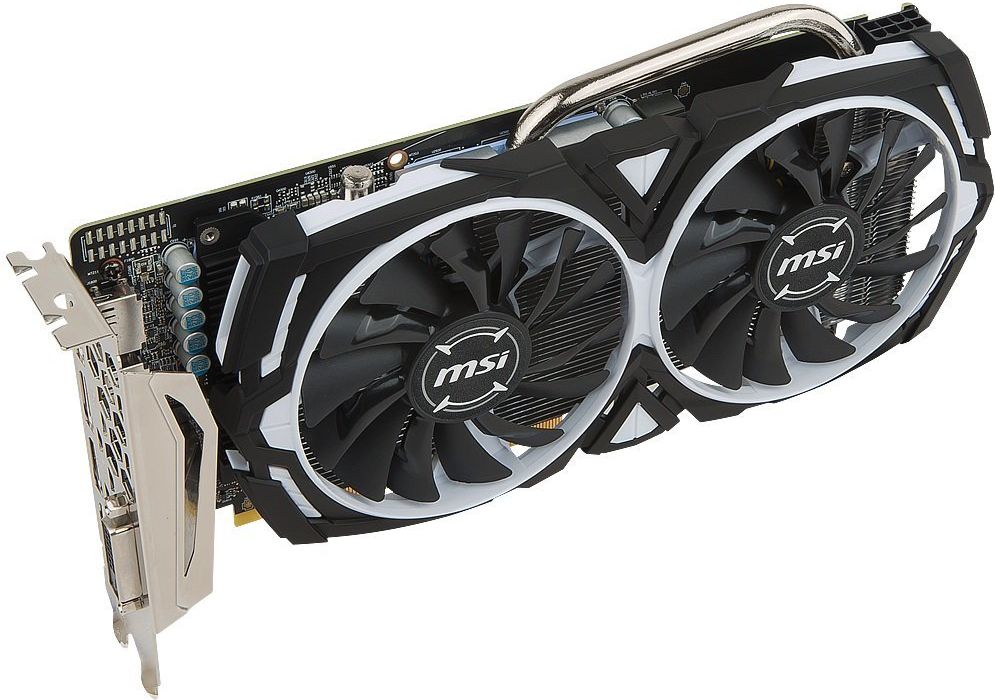

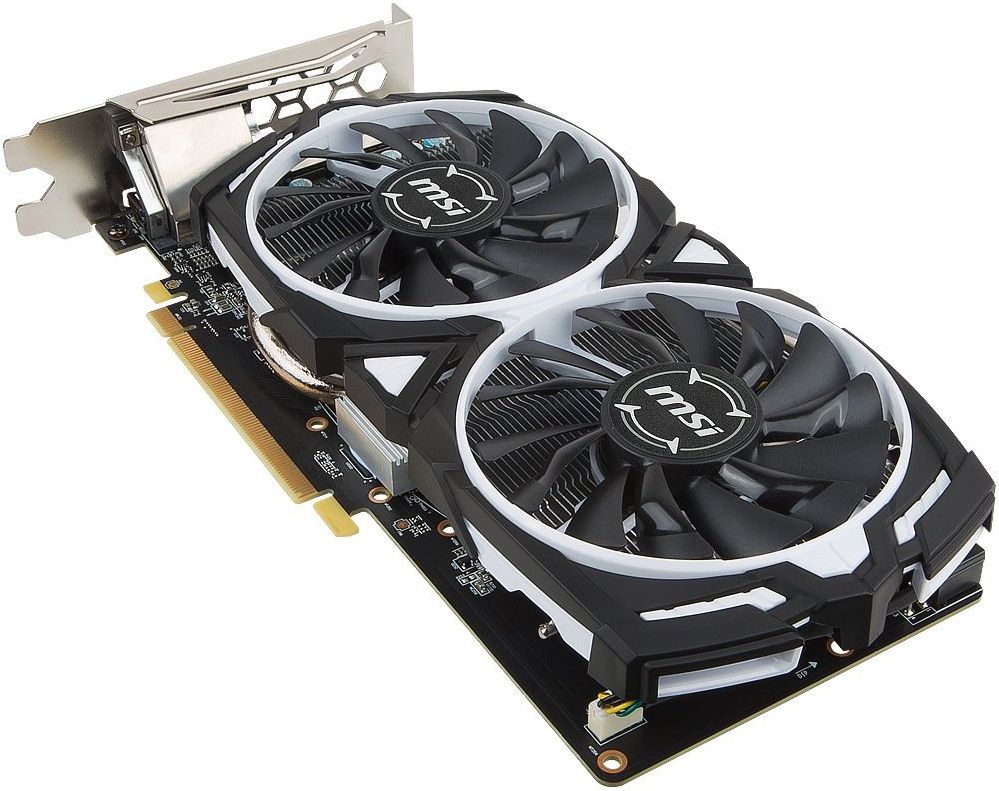

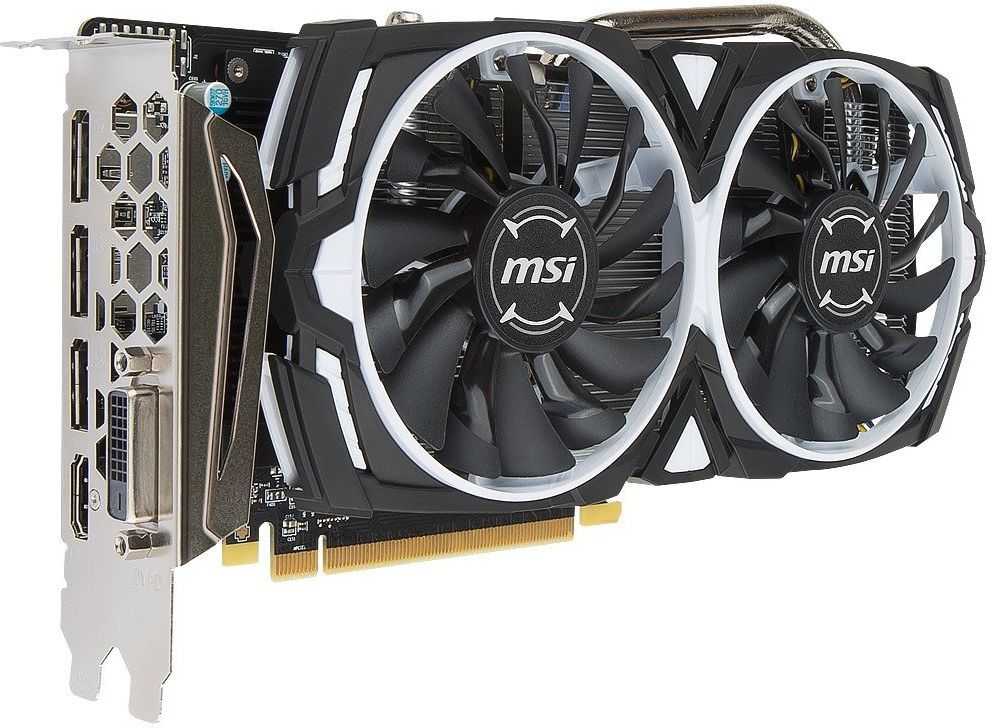

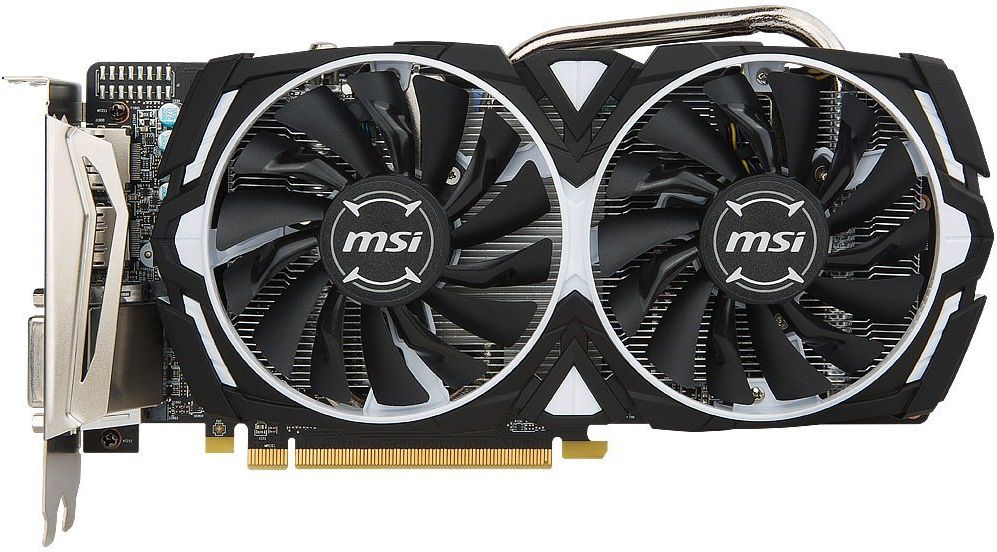

AMD Radeon RX470 4 GB GDDR5
Some new economic model with 5 display outputs. Uses just a single 8-pin power connector.
Supports macOS Mojave/Catalina/Big Sur and Monterery.
Key features:
- Apple Mac Pro 4,1 (2009) or Mac Pro 5,1 (2010-2012)
- installed macOS 10.13.4 (High Sierra) or newer
- native support by macOS High Sierra/Mojave/Catalina/Big Sur/Monterey, no drivers needed
Key features:
- compatible with macOS and Windows (via BootCamp)
- supports Apple boot screen (gray screen with Apple logo on startup) on all ports (also on 4K displays)
- uses internal Mac Pro power supply
- supports PCI Express 2.0 link under macOS and Windows

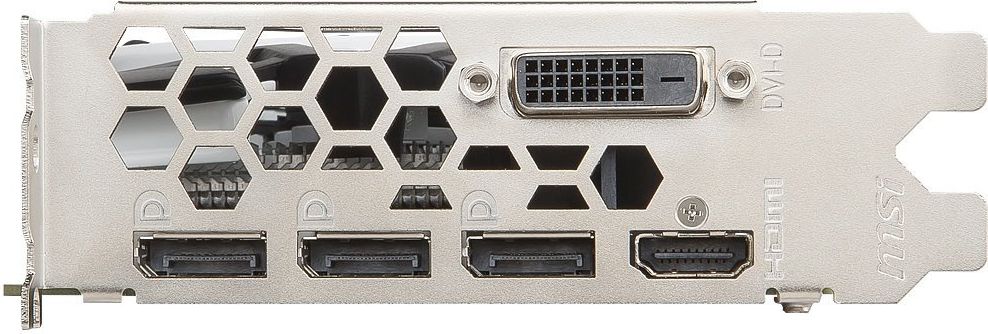

- supports five displays simultaneously: 1x DVI-D dual-link, 3x DisplayPort 1.4 + 1x HDMI 1.4 (2.0 under Windows)
- supports 4K@60Hz via DisplayPort or 5K@60Hz via dual DisplayPort port and 4K@30Hz via HDMI port
- supports OpenGL, OpenCL and Metal in applications and games
- allows an upgrade to macOS Mojave 10.14.6, macOS Catalina 10.15.7, macOS Big Sur 11.7, macOS Monterey 12.0.1 or later
- supports sound via HDMI and DisplayPorts under macOS (from macOS 10.14 or above)
Technical specification:
- graphics processor clock: 1230 MHz
- memory speed: 1650 MHz
- amount and type of memory: 4 GB GDDR5
- bus width: 256-bit
- bus: PCI-Express 2.0 x16 (5.0 GT/s)
Boot screen
- up to 4K@60Hz via DisplayPort, up to 4K@30Hz via HDMI, up to 4K@30Hz via DVI
Condition
- Used (flashed)
- 12 months
Package includes
- 2x 6-pin Mac Pro PCIe power cable, 8-pin to 2x 6-pin power adapter
Specification
- 1x DVI dual-link, 3x DisplayPort 1.4, 1x HDMI 2.0 (1.4 under macOS)
- up to 5 concurrent displays
- 1230 MHz
- 1650 MHz
- 4 GB GDDR5
- 256-bit
- PCI-Express 2.0 x16 (5.0 GT/s)
- not supported
- 8-pin
- 120 W
- HDMI Audio, DisplayPort Audio
- Metal, OpenCL, OpenGL
System Requirements
- 4,1 (2009), 5,1 (2010-2012)
- 10.13.4 (High Sierra) or later, 10.14 (Mojave) or later, 10.15 (Catalina) or later, 11.0.1 (Big Sur) or later, 12.0.1 (Monterey) or later
- Not needed
- Yes, via Apple BootCamp (also in UEFI mode)
