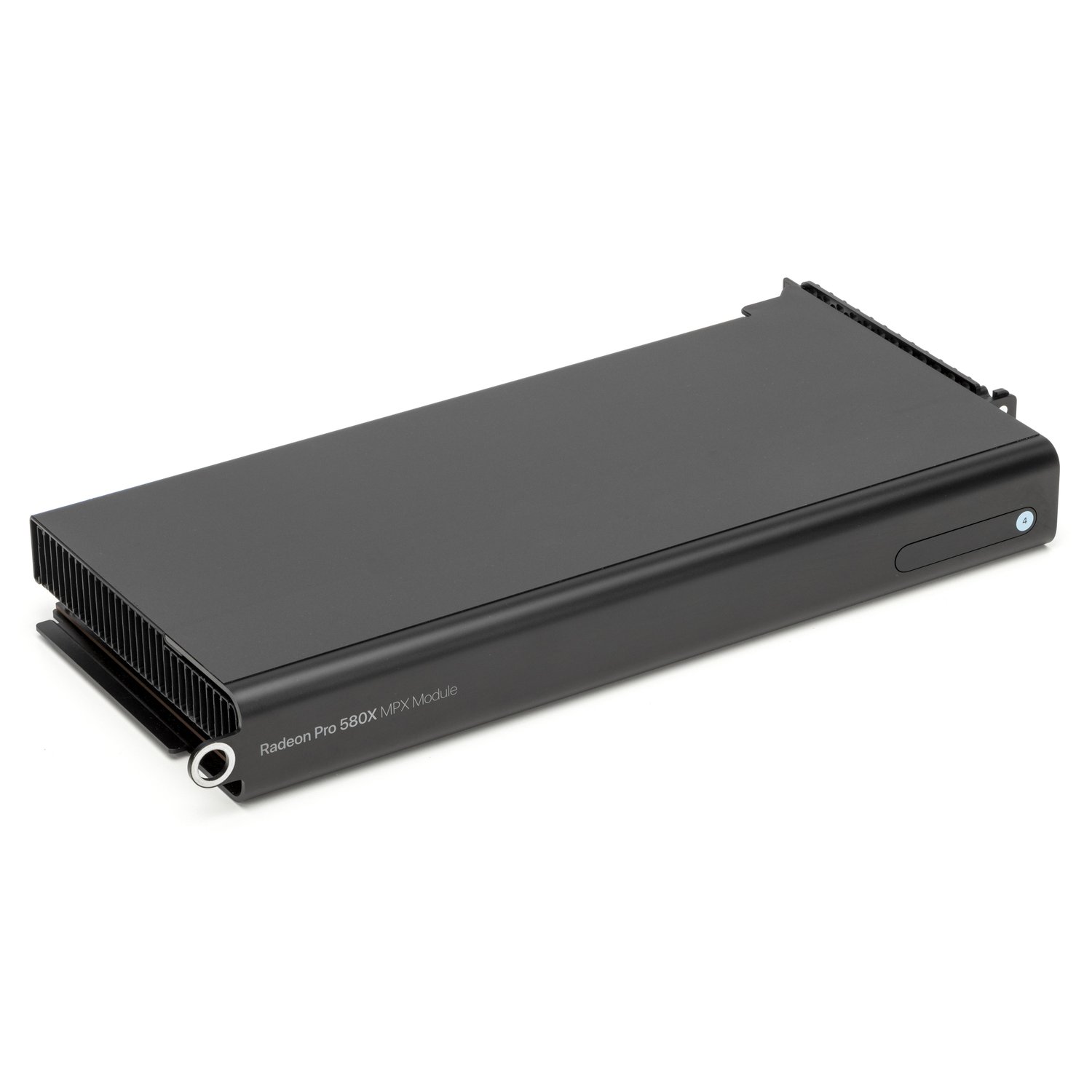

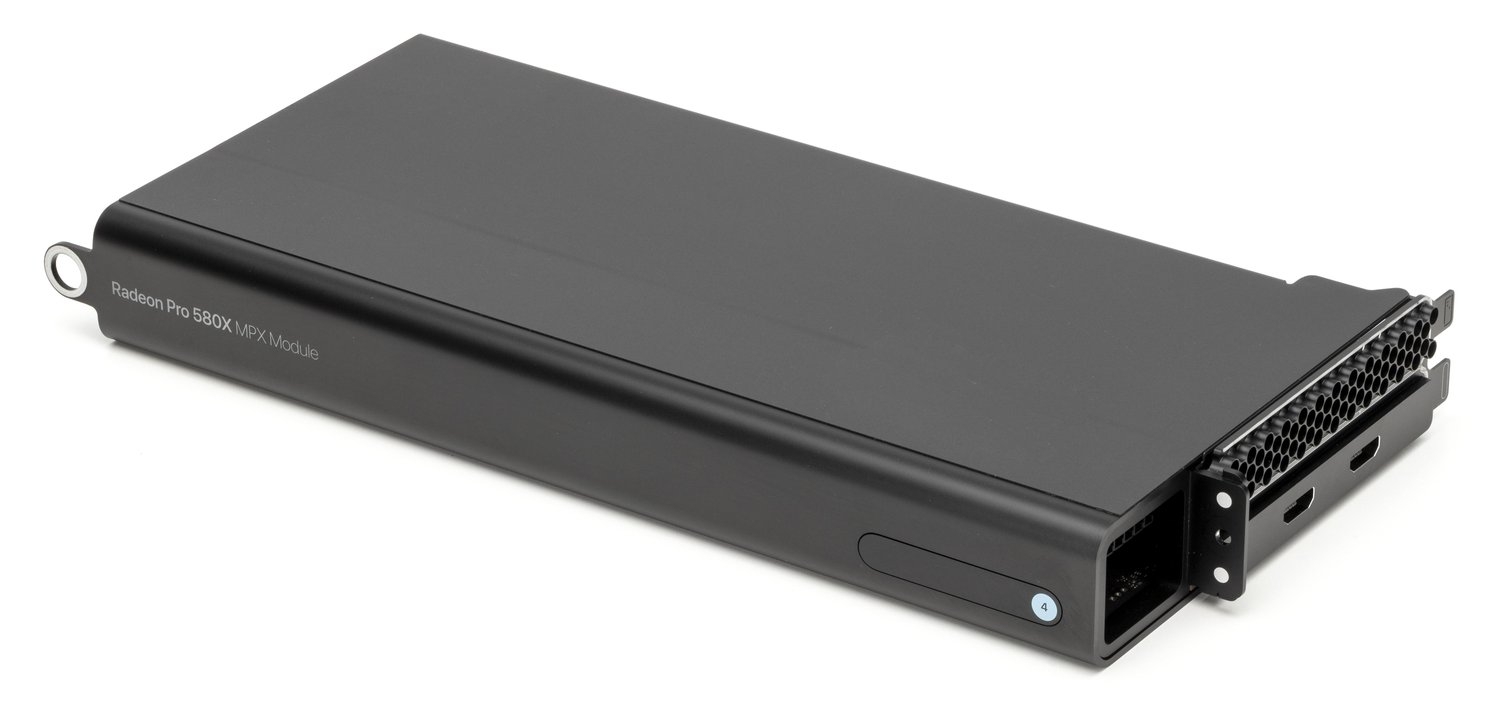

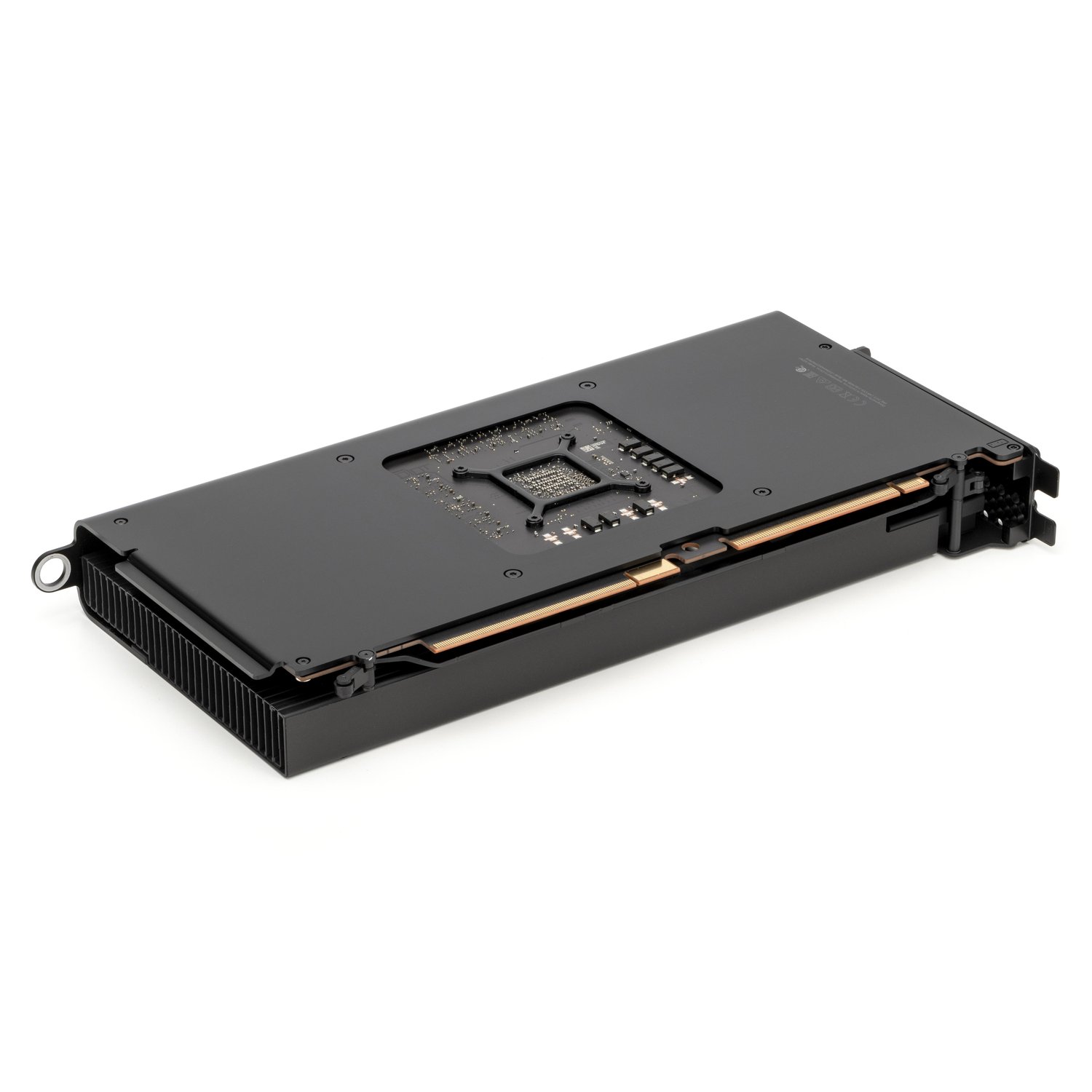

Pulled from a nearly new Mac Pro 7.1 (2019). Fully working.
- 36 compute units, 2304 stream processors
- 8GB GDDR5 memory
- Up to 5.6 teraflops in single-precision mode

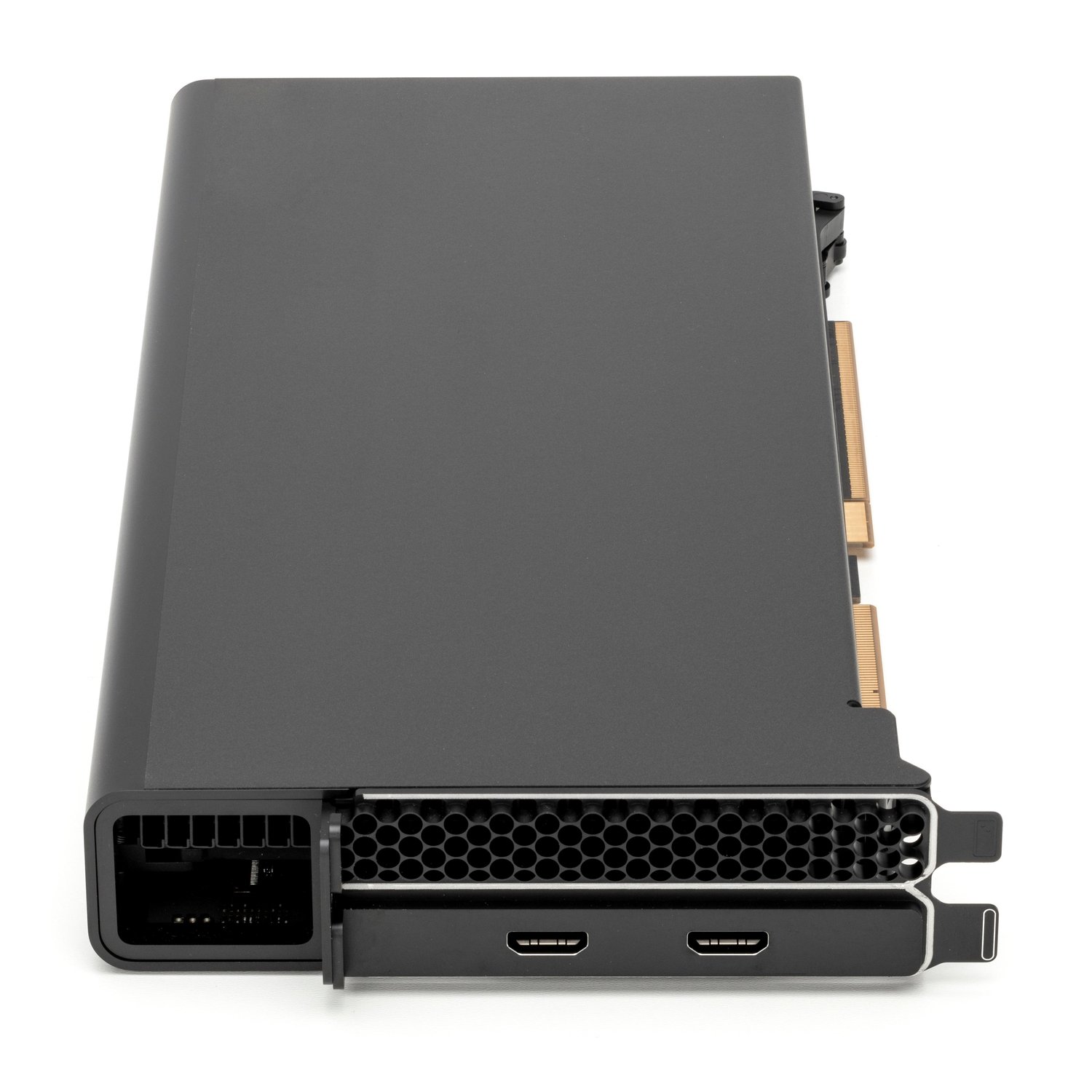

- Two HDMI 2.0 ports on the card
- Four DisplayPort connections routed to the system's internal Thunderbolt 3 ports
- Support for up to six 4K displays, two 5K displays, or two Pro Display XDRs
- Half-height MPX module occupies one MPX bay and allows for the use of the second PCIe slot for further expansion
You can connect as many as six displays in these configurations:
-
Two Pro Display XDRs with resolutions of 6016 x 3384 at 60Hz connected to the Thunderbolt 3 ports on your Mac Pro. Connect one display to a Thunderbolt 3 port on the top of your Mac Pro and the other display to a Thunderbolt 3 port on the rear of your Mac Pro.
-
Two 5K displays with resolutions of 5120 x 2880 at 60Hz connected via Thunderbolt 3 and two 4K displays with resolutions of 3840 x 2160 at 60Hz connected via HDMI. Connect one 5K display to a Thunderbolt 3 port on the top of your Mac Pro and the second 5K display to a Thunderbolt 3 port on the rear of your Mac Pro.
-
Six 4K displays with resolutions of 3840 x 2160 at 60Hz connected via HDMI and Thunderbolt 3.
